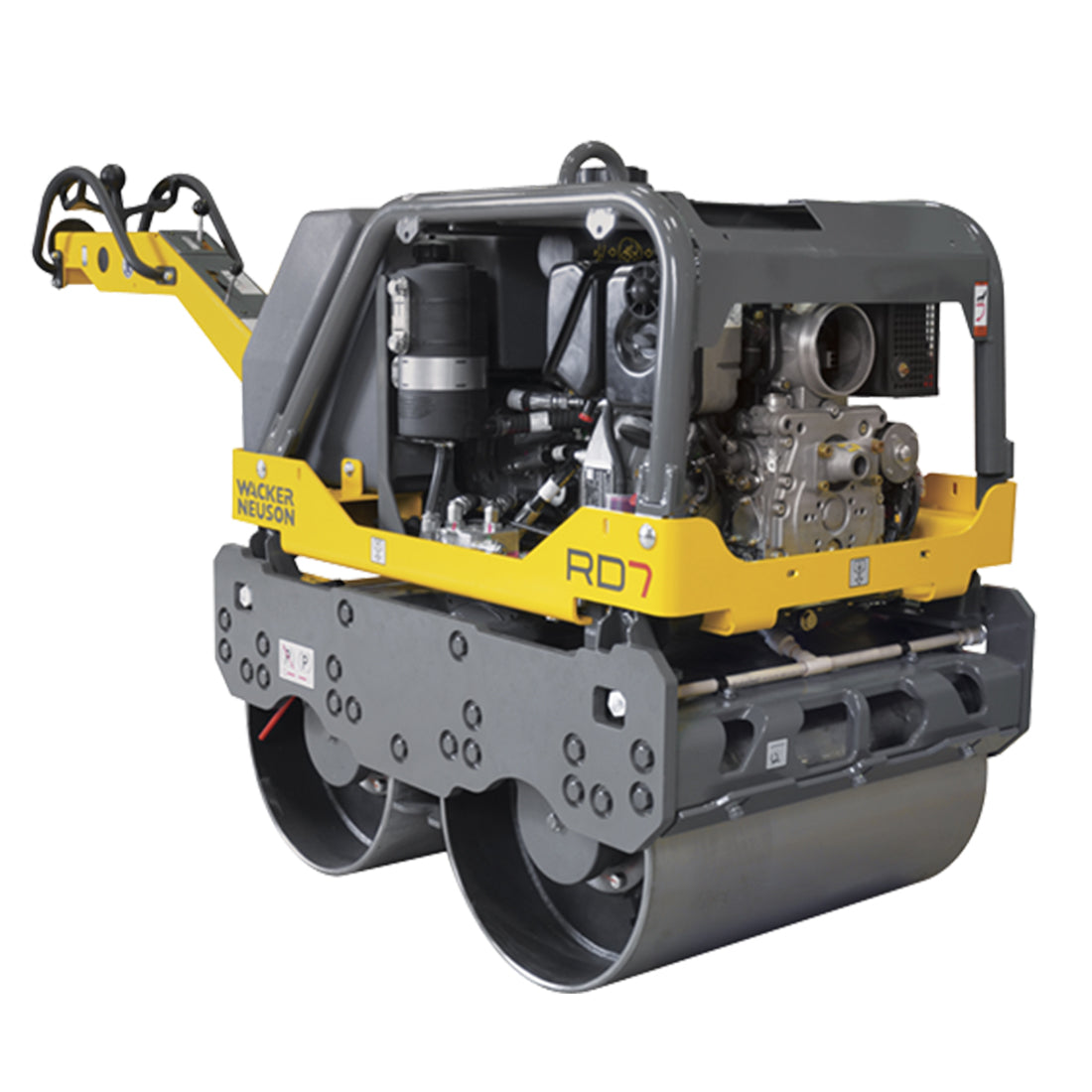

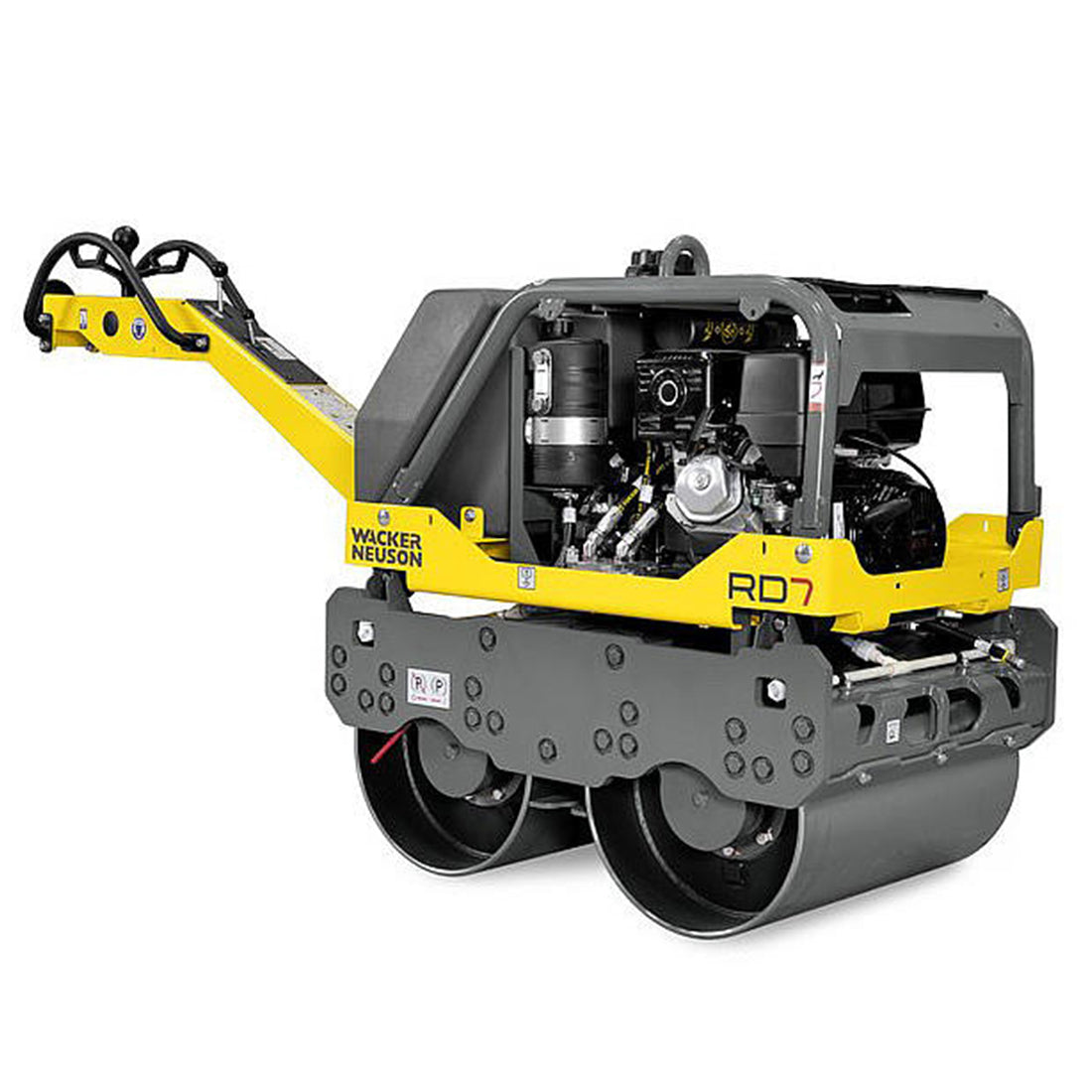

Wacker Neuson RD7A Walk-Behind Roller

SKU RD7A
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
Original price $16,249.99 - Original price $16,249.99
Original price
$16,249.99
$16,249.99 - $16,249.99
Current price $16,249.99

RD7A walk-behind double drum vibratory rollers (tandem) are easy to maneuver while performing a wide range of soil and asphalt compaction applications. The exclusive compact design allows for tight side clearance on both sides of the roller. These versatile rollers, offer dual smooth drums with beveled edges to effectively compact asphalt and granular materials. The totally hydrostatic drive provides for less maintenance and greater reliability.

Features:

  • Patent-pending handle design offers multiple gripping points for easier control and turning of the unit, plus a center handle allows the operator fine control finishing asphalt
  • Open frame design provides for fast cleaning with a pressure washer and easy to access components simplifies service significantly reducing downtime between uses
  • Large water tank with easy access cap and quick view of water level provides for longer running time between refills
  • Unique foot operated handle lock allows for easy tilting of the handle for storage
  • Easy to reach throttle and low/high exciter force controls conveniently located on the shock mounted low vibration handle increases operator comfort

***This item does not qualify for free shipping***

Specifications
Model RD7A
Operating Weight 1,521.17 lbs.
Drawbar in working position (Length x Width x Height) 97.2 x 28.37 x 47.28 in.
Drum width 25.61in.
Drum diameter 15.76in.
Lateral Overhang Right 1.18 in.
Lateral Overhang Left 1.18 in.
Curb clearance left 0.89 in.
Centrifugal force max. 5,058.2 lbf
Frequency Stage I 2,760 Vpm
Frequency Stage III 3,360 Vpm
Linear force - front / rear (static) 30.26 / 30.26 lb/in.
Linear force - front / rear Dynamic 98.78 / 98.78 lbs./in.
Travel speed forward 2.8 mph
Travel speed reverse 1.55 mph
Surface capacity area 31,161.78 ft²/h
Gradeability max. 33%
Hand-arm vibrations 8.2 ft/s²
Engine / Motor Type Honda; Air-Cooled, 4-Cylinder, Gasoline Engine
Displacement 23.73 in³
Operating performance 7.5 hp
At rpm 2,600 rpm
Engine performance at 3,600 rpm 8.7 kW
Fuel tank capacity 1.61 US gal
Water tank capacity 15.85 US gal
