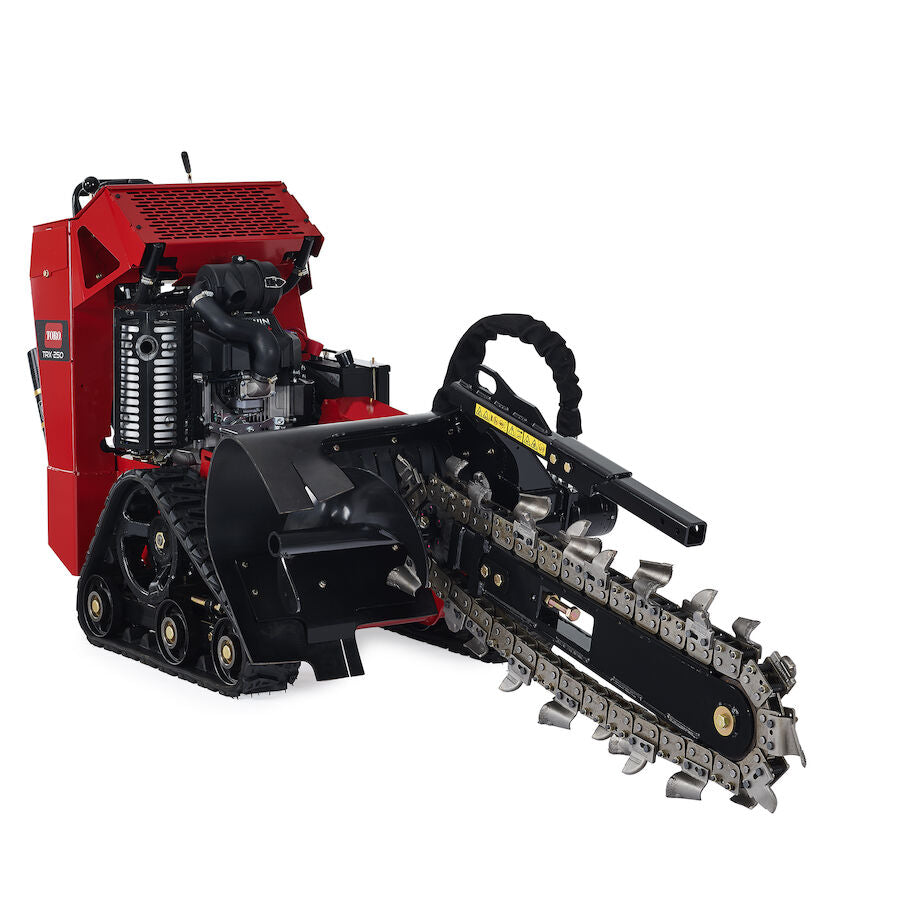

Toro 22983 TRX-250 Walk-Behind Trencher
Toro TRX walk-behind trenchers are now more efficient and powerful than ever. We’ve improved our lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.
Features:
-
Track Design- The track drive design provides a low center of gravity and large footprint, offering stability and increased maneuverability without causing damage to existing turf.
-
Easy-to-Use Controls- The TRX’s streamlined controls are easy to learn and operate. Designed to include the familiar TRX trencher valve handle and boom lift lever, as well as independent traction control for the left track and the right track.
-
Exclusive Intelli-Trench® Technology- Intelli-Trench automatically diverts the hydraulic flow from the traction motors to the trencher motor when needed, delivering higher torque while reducing trenching times.
-
Boom Motion- The boom lift and lower function has been enhanced hydraulically, allowing the boom to move up and down smoothly.
-
Simplified Service- The new TRX design has significantly fewer parts than previous models, simplifying maintenance and potentially reducing service needs.
Specifications
| Boom Depth Options (cm) | 60.9 cm, 91.4 cm and 121.9 cm |
|---|---|
| Boom Depth Options (inches) | 24", 36" and 48" |
| Boom Width Options (cm) | 10.1 cm and 15.2 cm |
| Boom Width Options (inches) | 4" and 6" |
| Cooling System | Air Cooled |
| Engine Make | Toro |
| Engine Model | V-Twin |
| Fuel Tank (gallons) | 4 |
| Fuel Tank (liters) | 15.1 |
| Fuel Type | Gasoline |
| Ground Pressure | 24" (60.9 cm) boom = 4.1 psi 36" (91.4 cm) boom = 4.4 psi 48" (121.9 cm) boom = 4.5 psi |
| Ground Speed Forward (mph) | 2.4 |
| Ground Speed Foward (km/h) | 3.9 |
| Ground Speed Reverse (km/h) | 2.4 |
| Ground Speed Reverse (mph) | 1.2 |
| Headshaft Speed | 210 rpm with 498 ft/lbs of torque |
| Hour Meter | Standard |
| Hydraulic Flow Auxiliary | 13.2 gpm (50.0 lpm) |
| Hydraulic Flow Traction | 16.2 gpm (61.3 lpm) transport 30 gpm (11.4 lpm) trenching (each pump) |
| Hydraulic Pressure (bar) | 184 |
| Hydraulic Pressure (psi) | 2670 |
| Manufacturer's Gross HP Rating | 24.5 |
| Manufacturer's Gross kW Rating | 18.3 |
| Oil Capacity (liters) | 2.4 |
| Oil Capacity (quarts) | 2.5 |
| Overall Height (cm) | 116.8 |
| Overall Height (inches) | 46 |
| Overall Length w/24" Boom (inches) | 82.5 |
| Overall Length w/61 cm Boom (cm) | 209.5 |
| Overall Width (cm) | 86 |
| Overall Width (inches) | 33.8 |
| Reservoir Capacity (gallons) | 6.3 |
| Reservoir Capacity (liters) | 23.8 |
| RPM | 3600 |
| Start Method | Electric |
| Track Drive | Sprocket-drive, 3 road wheels per side |
| Track Width (cm) | 14.9 |
| Track Width (inches) | 5.9 |
| Tracks | Endless nylon reinforced rubber |
| Traction | Two-section hydraulic pump with two hydraulic motors (one for each track) |
| Weight (kg) | 500 |
| Weight (lbs) | 1104 |
| Wheelbase (cm) | 58.4 |
| Wheelbase (inches) | 23 |
