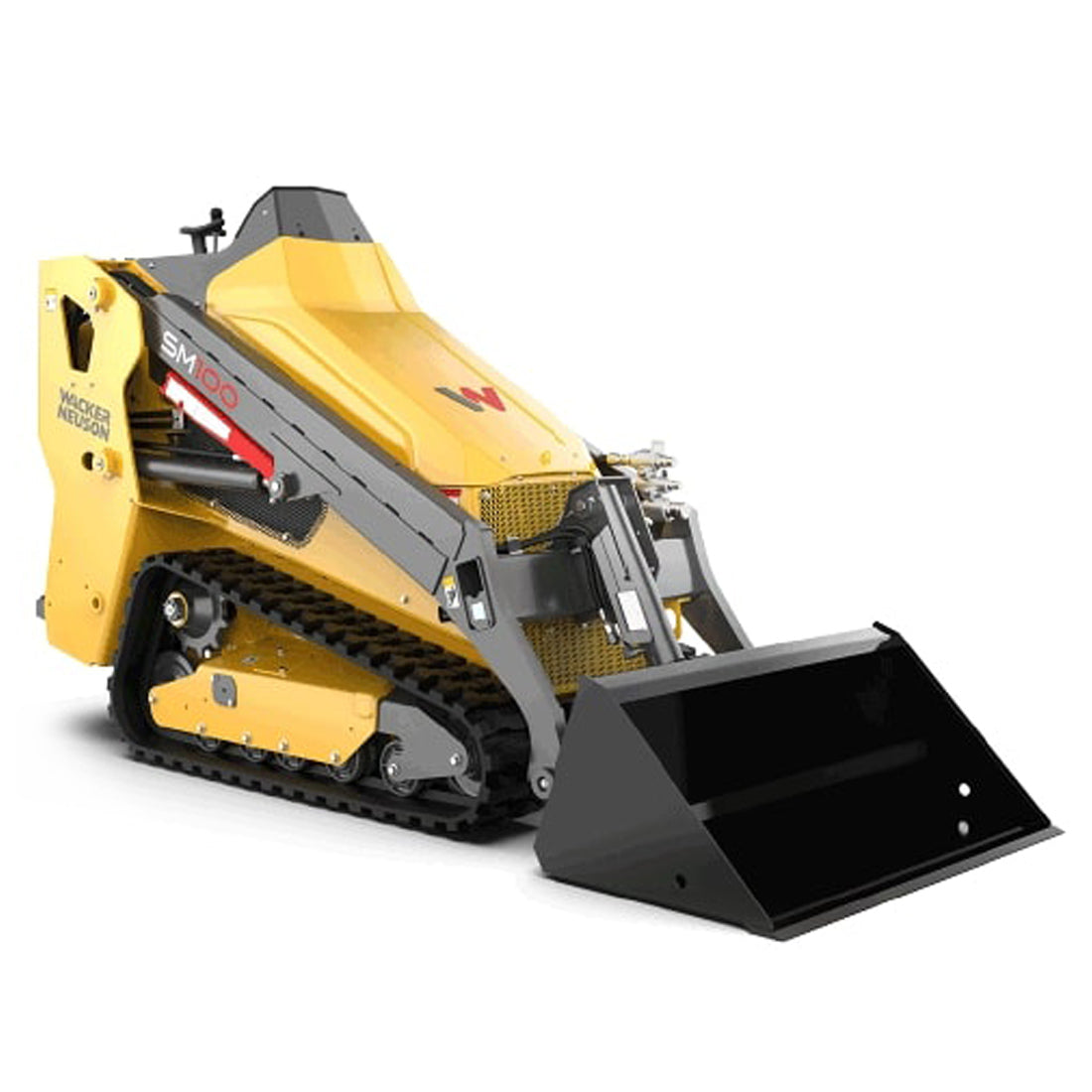

Wacker Neuson SM100 Utility Track Loader
SKU UTL-SM100
Original price
$49,222.00
-
Original price
$49,222.00
Original price
$49,222.00
$49,222.00
-
$49,222.00
Current price
$49,222.00
Wacker Neuson’s versatile SM100 is the perfect fit for landscaping projects, light site work, grading, auguring and general material handling.
Features:
- Standard 9-inch wide tracks provide low ground pressure, reducing turf disturbance and repair work
- Narrow overall machine width of 35.5" fits through doorways, gates and other tight spaces
- Optimized radial lift path provides vertical lift performance with hinge pin height of 85.7" for dumping
- into high-sided trucks and has the reach for loading into truck beds
- Common industry attachment interface for use with compatible attachments
- Standard faster auxiliary hydraulic block
- Large, spring-suspended operator platform for improved stability on any terrain
- Operator station with ergonomic padding for comfort and stability
- Ergonomic, forward angled joystick design reduces fatigue
- Front-mounted coolers eliminate airflow across operator legs
- Excellent visibility
- Durable undercarriage with triple flanged roller design reduces maintenance cost and total cost of ownership
- Operator presence system prevents accidental movement of lift arm and travel functions when operator steps off platform
- Proven, aftertreatment-free turbo diesel Yanmar engine
- Easy access service points
Specifications
| Model | SM100 |
| Rated operating capacity at 35% | 1,000 lb. |
| Tipping load | 2,857 lb. |
| Operating weight | 3,300 lb. |
| Travel speed | 5.2 mph |
| Ground pressure | 4.1 psi |
| Auxiliary flow rate | 13 gpm |
| Auxiliary pressure | 3,045 psi |
| Engine type | Yanmar 3TNV80FT, liquid-cooled, 4-cycle, 3-cylinder, turbocharged diesel engine |
| Power | 24.7 hp |
| Max torque at 1800 rpm | 62.6 lbf |
| Idle speed low/high | 1,200/2,600 rpm |
| Fuel tank capacity | 14.1 gal. |
| Overall length bucket | with 108"/ without 84.3" |
| Overall width x height | 35.5" x 58.2" |
| Hinge pin height | 85.7" |
| Dump height | 62.8" |
| Bucket roll back ground/max height | 25/92 deg. |
| Bucket dump angle at max height | 42 deg. |
| Ground clearance | 7.8" |
| Track length on ground | 43" |
| Angle of departure | 25.6 deg. |
Not Available To Ship
However, it is available for in-store purchase. Take advantage of our in-store deals and competitive pricing. Contact or visit one of our many Russo Power Equipment locations today!
