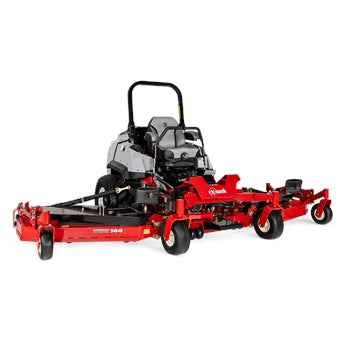

Exmark Lazer Z Diesel LZS86TDYM12RW0 144 In. Zero Turn Mower

by Exmark
SKU LZS86TDYM12RW0
Availability:
in stock
Original price $92,129.00 - Original price $92,129.00
Original price
$92,129.00
$92,129.00 - $92,129.00
Current price $92,129.00

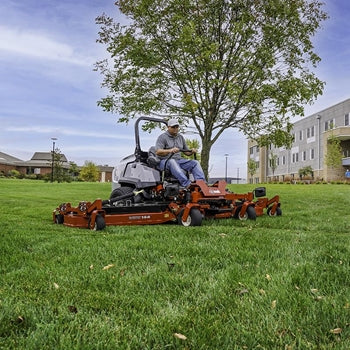

When maximum productivity, durability, and cut quality are your priorities, the new Exmark Lazer Z Diesel zero-turn mowers are the right choice. When equipped with the new industry-leading 144-inch UltraCut Flex Wing cutting deck, the Lazer Z Diesel can mow 11.5 acres per hour, making it the most productive mower Exmark has built. Powered by a cutting-edge Yanmar diesel engine, large drive tires allow you to reach ground speeds up to 12.5 MPH with the 96" deck. The Lazer Z Diesel is also available with 60 and 72-inch UltraCut cutting decks. Delivering a high-quality cut, the flex wings on the 96-inch and 144-inch decks pivot 20-degrees up and 15-degrees down on sloping terrain. The Lazer Z Diesel zero-turn mower delivers unparalleled durability and precision maneuverability. So, if you’re looking for our top-of-the-line, most productive mower, the Lazer Z Diesel mower is the best option for you.

Features:

  • Improved Handling -The engine and radiator have been placed lower to the ground in the redesigned Lazer Z Diesel. This provides an even lower center of gravity leading to improved traction and a smoother ride.

  • Fuel Capacity- For longer work intervals, the Lazer Z Diesel has a 12.0-gallon capacity with two tanks. This will keep you mowing longer with fewer fill-ups.

  • Tire Size / Ground Speed- The 26" x 12"-12" drive tires allow you to reach speeds up to 12.5 mph on machines equipped with the 1.6 Liter Common Rail engine. The large drive tires also provide superior traction and handling, giving you the ability to manage diverse terrain and conditions.

  • On-Board Intelligence- The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes.

  • Reduced Maintenance and Service- With an efficient and robust powertrain system, in addition to eliminating drive belts, these machines have less maintenance and longer service intervals. And the tool-less belt access and removable floor pan makes servicing easy.

  • Hydraulic Deck Lift- Standard on all diesel units, the hydraulic deck lift provides for easy cutting height adjustment and quick transport.

  • Productivity- The robust engine power and large deck sizes make these mowers Exmark's most productive diesel machines ever. They are a great solution for universities, municipalities and other sizeable properties.

    Specifications
    Engine Manufacturer Yanmar 3TNV86CT
    Displacement 1568 cc
    Emissions Series: TNV
    Rated Engine Speed 3,000 RPM
    Air Filter Heavy-duty canister air filtration system with electronic vacuum sensor
    Engine Power 43.5 HP
    Fuel Type Diesel
    Fuel System Electronically Governed IDI Turbo Diesel | Indicator: Mechanical float type
    PTO Type  Engagement: Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
    Drivetrain Hydro-Drive | Description: Kanzaki KPS-18T Transmission, 16-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-H motors, hydraulic oil cooler.
    Steering  Control: Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
    Parking Brake Lever-actuated internal wet disc brake.
    Tires, Front Specification 26x12-12, 6ply Multi Trac® | Caster: 15 x 6.0-6, smooth-tread, semi-pneumatic.
    Tires, Rear Specification 26x12-12, 6ply Multi Trac®
    Electrical 12-volt battery with 55-amp alternator.
    Operating Speed Forward: 0–11.0 mph (18 kmph) | Reverse: 0–6 mph (10 kmph)
    Top Speed Blade: Approximately 17,900 fpm
    Frame Type Tractor: Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.
    Safety Features Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
    Spindle Diameter Cutter Housing: 7.75" | Shaft: 25mm (.98")
    Dimensions Casters: .50"
    Cutting Width Deck: 144"
    Width 144.9 in. (368cm), 84 in. (213cm) @ 3 in. HOC when folded
    Length Blades: 6 Blades at 24.50" | 101.3 in. (257.3 cm)
    Height Cutting: 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments | 72.6 in. (184.3 cm)
    Fuel Capacity 12-gallon (45.4-L)
    Weight  Curb: 3250
    Seat Type  Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
    Construction Material, Deck Style: Floating Deck | Style Description: Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with option to mulch. | 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
