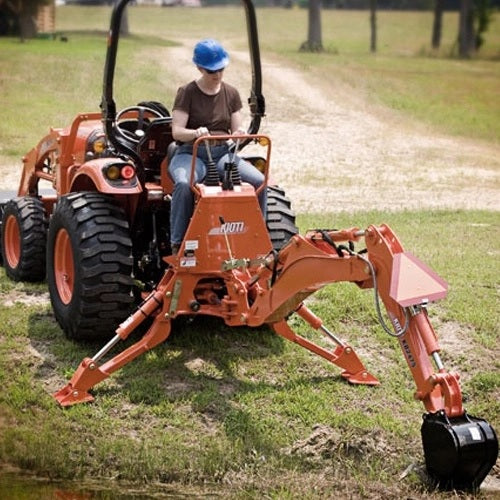

Kioti KB2475L Backhoe
*Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
Features:
• Subframe mounted.
• Factory assembled.
• Responsive two-lever hydraulic control with exceptional feathering characteristics.
• Anti-drop load-checks.
• Standard buckets: 9", 12", 16", 18", 24" and 36".
• All buckets have replaceable teeth.
• Extra heavy-duty buckets.
• Entire backhoe except for subframe is quick-detached from tractor.
Specifications
| Digging Depth (two foot flat bottom) | 89.7 in. (2,280 mm) |
| Reach from center line to swing pivot | 125.1 in. (3,180 mm) |
| Loading Height (bucket at 60˚) | 72.4 in. (1,840 mm) |
| Maximum Leveling Angle | 10˚ |
| Swing Arc | 180˚ |
| Transport Height (Maximum) | 83.5 in. (2,120 mm) |
| Transport Overhang | 49 in. (1,245 mm) |
| Bucket Rotation | 180˚ |
| Stabilizer Spread (down position) | 68.7 in. (1,745 mm) |
| Stabilizer Spread (up position) | 46.4 in. (1,180 mm) |
| Angle of Departure | 21˚ |
| Shipping Weight - Backhoe | 880 lbs. (399 kg) |
| Bucket Digging Force | 2,817 lbs. (1,278 kg) |
| Dipperstick Digging Force | 2,105 lbs. (955 kg) |
| Operating Pressure | 2,466 psi (170 bar) |
