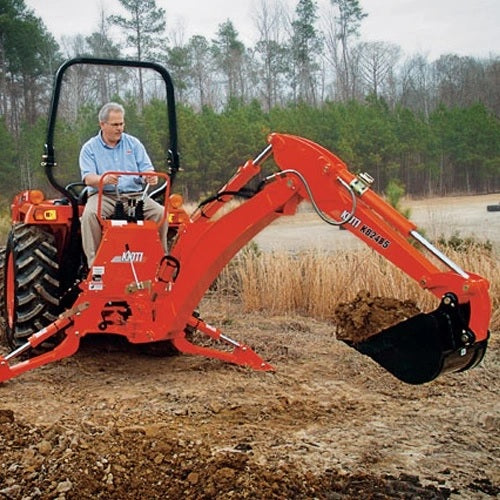

Kioti KB2485 Backhoe
Specifications may vary depending on tractor model and are subject to change without notification. Tractors must be equipped with ROPS and seat belt that will provide greater safety.
Features:
• Subframe mounted.
• Self-contained hydraulics (not available for all applications).
• Factory assembled.
• Responsive two-lever hydraulic control with exceptional feathering characteristics.
• Anti-drop load-checks.
• Standard buckets: 12", 16", 18", 24" and 36" wide ditch and grave buckets.
• All buckets have replaceable teeth.
• Extra heavy-duty buckets.
• Entire backhoe except for subframe is quick-detached from tractor.
Specifications
| Digging Depth | 94.4" (2,400 mm) |
| Reach (From center of Swing Pivot) | 136.1" (3,460 mm) |
| Loading Height (Bucket at 60 degrees) | 80.3" (2,040 mm) |
| Swing Arc | 180° |
| Transport Height (Maximum) | 92.9" (2,360 mm) |
| Transport Overhang | 50.4" (1,280 mm) |
| Bucket Rotation | 180° |
| Stabilizer Spread (Down Position) | 68.7" (1,745 mm) |
| Stabilizer Spread (Up Position) | 46.4" (1,180 mm) |
| Shipping Weight (Less Bucket) | 1,102 lbs. (500 kg) |
| Bucket Digging Force | 3,748 lbs. (1,700 kg) |
| Dipperstick Digging Force | 2,205 lbs. (1,000 kg) |
| Operating Pressure | 2,466 psi (170 bar) |
Not Available To Ship
However, it is available for in-store purchase. Take advantage of our in-store deals and competitive pricing. Contact or visit one of our many Russo Power Equipment locations today!
