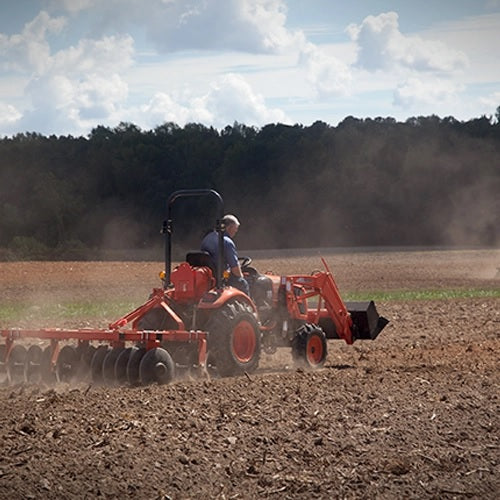

Kioti KL2510 Front End Loader

SKU KL2510
by Kioti
Request a quote

The KIOTI KL2510 front end loader is specifically designed for the CX2510 tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.

Features:

•  Low profile design maximizes operator's visibility.
•  Designed to be quickly and easily attached and detached.
•  A built-in parking stand on the front end loader provides quick and easy connection.
•  Mid-mount style frame for engine accessibility.
•  A bucket level indicator is standard.
•  Color compliments KIOTI tractor.

Specifications
Maximum Lift Height to pivot pin 87.8 in. (2,230 mm)
Clearance w/ Attachment Level 84.3 in. (2,141 mm)
Clearance w/ Attachment Dumped 67.2 in. (1,706 mm)
Reach at Maximum Height 31.5 in. (800 mm)
Maximum Dump Angle 53˚
Reach w/ Bucket on Ground 59 in. (1,498 mm)
Maximum Rollback Angle 33˚
Digging Depth Below Grade 3.9 in. (99 mm)
Overall Height in Carry Position 40 in. (1,016 mm)
Depth of Attachment (to back of inner shell) 19.9 in. (505 mm)
Height of Attachment 18.2 in. (411 mm)
Length of Attachment (to pivot pin) 24.9 in. (632 mm)
Lift Capacity to Full Height at Pivot Pins 1,092 lbs. (495 kg)
Breakout Rollback Force at Pivot Point 1,843 lbs. (836 kg)
Bucket Size 50 in. (1,270 mm)
