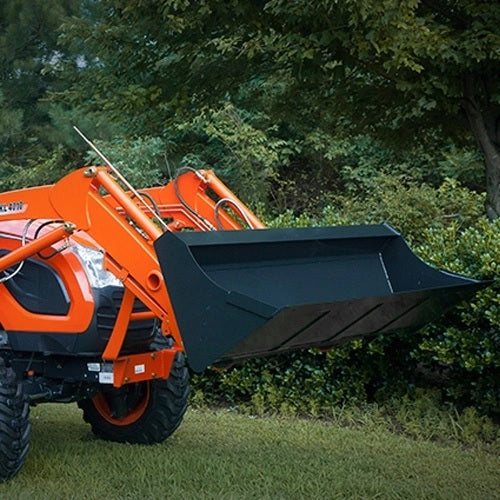

Kioti KL4010 Front End Loader
The KIOTI KL4010 front end loader is specifically designed for the CK10 Series tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
Features:
• Low profile design maximizes operator's visibility.
• Designed to be quickly and easily attached and detached.
• A built-in parking stand on the front end loader provides quick and easy connection.
• Mid-mount style frame for engine accessibility.
• Bucket level indicator is standard.
• Color complements KIOTI tractor.
Specifications
| Maximum Lift Height to pivot pin | 98.4 in. (2,500 mm) |
| Clearance w/ Attachment Level | 93 in. (2,360 mm) |
| Clearance w/ Attachment Dumped (45º) | 79.1 in. (2,010 mm) |
| Reach at Maximum Height | 27.2 in. (690 mm) |
| Maximum Dump Angle | 48º |
| Reach w/ Attachment on Ground | 62.2 in. (1,580 mm) |
| Maximum Rollback Angle | 28º |
| Digging Depth Below Grade | 5.3 in. (135 mm) |
| Overall Height in Carry Position | 49.6 in. (1,260 mm) |
| Lift Capacity to Full Height at Pivot Pins | 1,835 lbs. (832 kg) |
| Breakout Force at Ground Line | 3,464 lbs. (1,571 kg) |
| Relief Valve Setting (Loader Control Valve) | 2,560 psi |
| Rated Flow (Tractor Hydraulic System) | 7.1 gpm |
| Bucket Size | 60 in. or 66 in. |
| Weight (with Bucket) | 840 lbs. (381 kg) |
| Depth of Attachment (to back of inner shell) | 19.9 in. (505 mm) |
| Height of Attachment | 20.7 in. (526 mm) |
| Length of Attachment (to pivot pin) | 26.9 in. (682 mm) |
| Raise Boom (2,600 rpm) | 3.9 seconds |
| Lower Boom (2,600 rpm) | 2.3 seconds |
| Dump Bucket (2,600 rpm) | 3.2 seconds |
| Retract Bucket (2,600 rpm) | 1.9 seconds |
