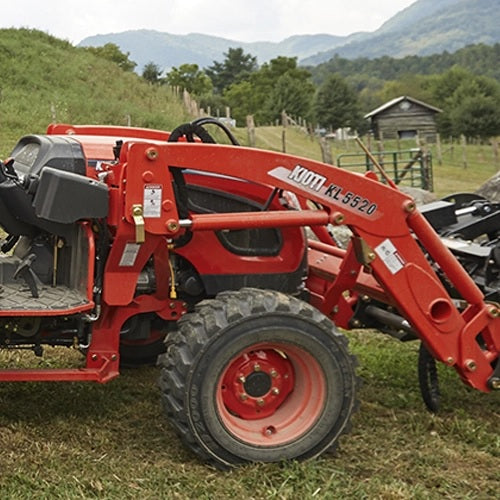

Kioti KL5520 Front End Loader

SKU KL5520
by Kioti
Request a quote

The KIOTI KL5520 front end loader is specifically designed for the DK10 & DK20 Series and ROPS models of the DK10SE Series. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.

Features:

•  Contoured design complements tractor styling.
•  Low profile design maximizes operator's visibility.
•  Designed to be quickly and easily attached and detached.
•  A built-in parking stand on the front end loader provides quick and easy connection.
•  Mid-mount style frame for engine accessibility.
•  A bucket level indicator is standard.
•  Color complements KIOTI tractor.

Specifications
Maximum Lift Height to Pivot Pin 107.7 in. (2,735 mm)
Clearance w/ Bucket Level 96.3 in. (2,446 mm)
Clearance w/ Bucket Dumped 78.8 in. (2,001 mm)
Reach at Maximum Height (45º) 22.7 in. (576 mm)
Maximum Dump Angle 46º
Reach w/ Bucket on Ground 71.1 in. (1806 mm)
Maximum Rollback Angle 41º
Digging Depth Below Grade 8.6 in. (218 mm)
Overall Height in Carry Position 54 in. (1371 mm)
Bucket Depth (Inner Shell) 18.5 in. (470 mm)
Bucket Height 22 in. (560 mm)
Bucket Length (Pivot Pin) 26 in. (660 mm)
Lift Capacity to Full Height at Pivot Pins 2,474 lbs. (1,122 kg)
Breakout Force at Pivot Pins 3,895 lbs. (1,767 kg)
Bucket Rollback Force at Ground Line 3,148 lbs. (1,428 kg)
Relief Valve Setting (Loader Control Valve) 2,774 psi (195 kg/cm²)
Rated Flow (Tractor System) 9.62 gpm (36.4 L/min)
Bucket Size(s) Available 66" QA / 72" QA
Bucket Capacity (Heaped) 66 in.: 14.5 cu. ft. / 72 in.: 16.0 cu. ft.
Approximate Weight (With Bucket) 66 in.: 1,361 lbs. (617 kg) / 72 in.: 1,389 lbs. (630 kg)
