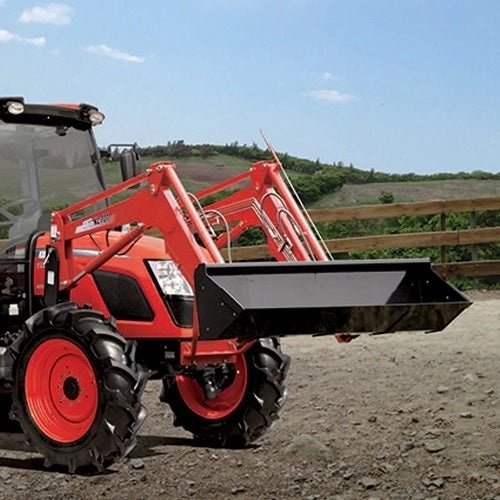

Kioti KL7320 Front End Loader

SKU KL7320
by Kioti
Request a quote

The KIOTI KL7320 front end loader is specifically designed for the RX6620/7320 model tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.

Features:

•  Low profile design maximizes operator's visibility.
•  Designed to be quickly and easily attached and detached.
•  A built-in parking stand on the front end loader provides quick and easy connection.
•  Mid-mount style frame for engine accessibility.
•  A bucket level indicator is standard.
•  Color complements KIOTI tractor.

Specifications
Maximum Lift Height to Pivot Pin 133.9 in. (3,401 mm)
Clearance w/ Attachment Level 123 in. (3,124 mm)
Clearance w/ Attachment Dumped 102.3 in. (2,598 mm)
Reach at Maximum Height 20.4 in. (518 mm)
Maximum Dump Angle 47˚
Reach w/ Attachment on Ground 80.4 in. (2,042 mm)
Maximum Rollback Angle 54˚
Digging Depth Below Grade 6.5 in. (165 mm)
Overall Height in Carry Position 69.3 in. (1,760 mm)
Depth of Attachment (to back of inner shell) 23.3 in. (592 mm)
Height of Attachment 22.9 in. (582 mm)
Length of Attachment (to pivot pin) 33 in. (838 mm)
Lift Capacity to Full Height at Pivot Pins 3,384 lbs. (1,535 kg)
Breakout Force at Pivot Pin 5,359 lbs. (2,431 kg)
Lift Cylinder I.D ø70mm X ROD 40mm
Bucket Cylinder I.D ø70mm X ROD 35mm
Bucket Size 82 in. (2,083 mm)
Bucket Weight 428 lbs.
Approx. Weight (without Bucket) 1,468 lbs.
Bucket Capacity (Heaped) 21.2 f³
Rated Flow 41.6 L/min
Relief Valve Setting 185 kg/cm² (66 hp) / 195 kg/cm² (73 hp)
Raise Boom (2,300 rpm) 6.3 seconds
Lower Boom (2,300 rpm) 4.2 seconds
Dump Bucket (2,300 rpm) 4.7 seconds
Retract Bucket (2,300 rpm) 3.5 seconds
